Automatically creating device nodes without the need of user using mknod

-
In our previous post, we have created a null device which acts a block hole. We will add logic in our driver code to avoid user using mknod to create /dev/my_null, instead allow driver to automatically create it on loading the module.


Code:

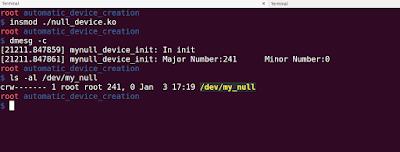

Output:

Notes:

 Automatic creating/deleting of device nodes is handled by udev. For udev to work properly, device driver should expose major and minor number to sysfs, that is done by below API's

 1. device_create — creates a device and registers it with sysfs. Verify it with (find /sys -name 'my_null')
2. class_create — create a struct class structure (ls -l /sys/class/my_driver_class)

Comments

Post a Comment

Popular posts from this blog

bb.utils.contains yocto

-

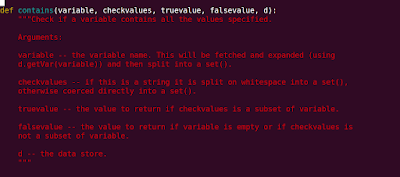

bb.utils.contains  is most commonly used function in Yocto. grep in poky directory returned with 696 count. $ grep -nr 'bb.utils.contains' poky/ | wc -l 696 It's definition is present in 'poky/bitbake/lib/bb/utils.py' file This function returns third argument if the second argument is subset of the first argument else returns fourth argument Let's take an example to understand this. You can see from the above screenshot, when the second argument is a subset of first argument, "present" was returned, else "notpresent" was returned We can also use bb.utils.contains inside if loop. This we can use inside a recipe. if ${@bb.utils.contains('SOMEFLAG','NEWVALUE3','true','false',d)}; then     FOO = 'HELLO' fi
